Verilog计数器练习

计数器代码：

`timescale 1ns / 1ps


module cnt(input clk,input rst,output reg [7:0] cnt,output reg plus   );

always@(posedge clk)
begin
    if(!rst)
        cnt <=0;
    else if(cnt==9)
        cnt<=0;
    else
        cnt<= cnt+1;
end

always@(posedge clk)
begin
    if(!rst)
        plus<=0;
     else if(cnt==9)
        plus<=1;
      else
        plus <=0;
end

endmodule

仿真代码：

`timescale 1ns / 1ps


module cnt_tb( );
reg clk;
reg rst;

wire[7:0] cnt;
wire plus;


cnt cnt_init(.clk(clk),.rst(rst),.cnt(cnt),.plus(plus));

initial
begin
    clk <=0;
    rst <= 0;

    #20
    rst <=1;
end

always #5 clk =~clk;

endmodule

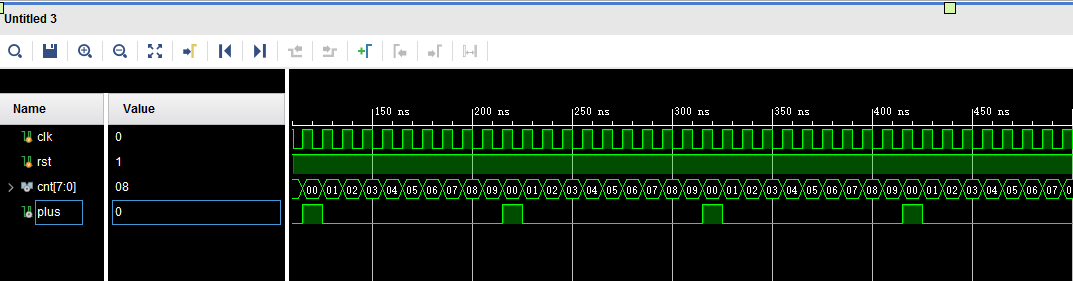

仿真结果：
